What is a PACS System? Elevate Your Medical Imaging Facility

Author:
RamSoft
Published:
October 20, 2023
Reading time:
4
minutes

What is a PACS System?

A PACS System is a medical imaging technology that allows for the storage, retrieval, presentation, and sharing of digital images. It streamlines the process of accessing imaging data, facilitating quicker and more collaborative decisions in patient care.

The PACS system stands as the pivotal component in modern PACS radiology, streamlining the way digital medical images and related documents are stored, presented, and shared. Especially when used in imaging centers and hospitals, the PACS system introduces a new era, pushing past the outdated practices of film jacket management.

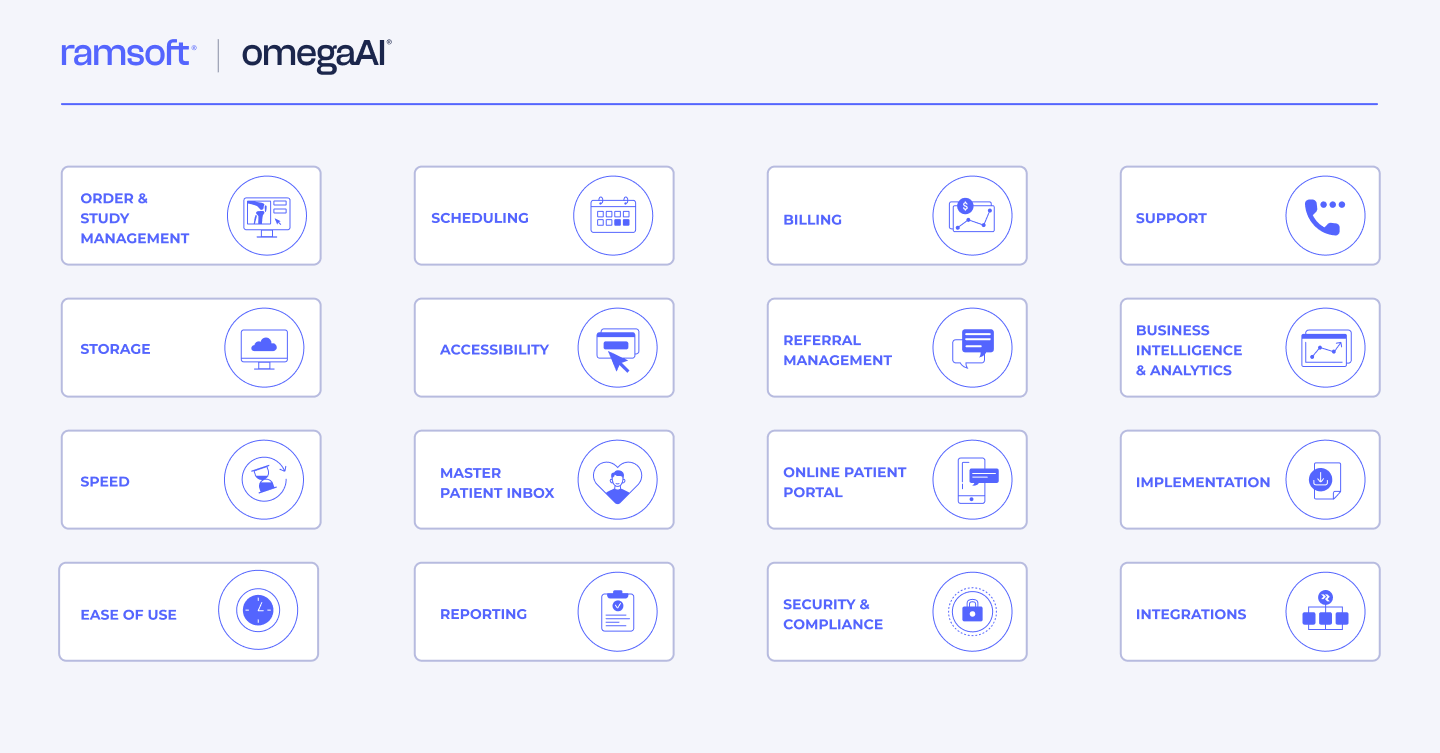

What does a PACS system do? Uses of PACS

The healthcare PACS system has many functionalities depending on the vendor, not limited to:

  • Digital Archiving: Replaces the need for physical storage, facilitating easy and rapid image retrievals.
  • Rapid Access: Offering healthcare professionals quick access to patient images, irrespective of their location, ensuring timely diagnosis and treatment.
  • Integration: Seamlessly merging with other healthcare systems, PACS ensures a centralized database, improving clinical workflows.
  • Image Sharing: Facilitating the easy transfer of images between departments or even different healthcare institutions, enhancing collaborative patient care.
  • Optimized Workflow: Increases healthcare efficiency by reducing manual processes

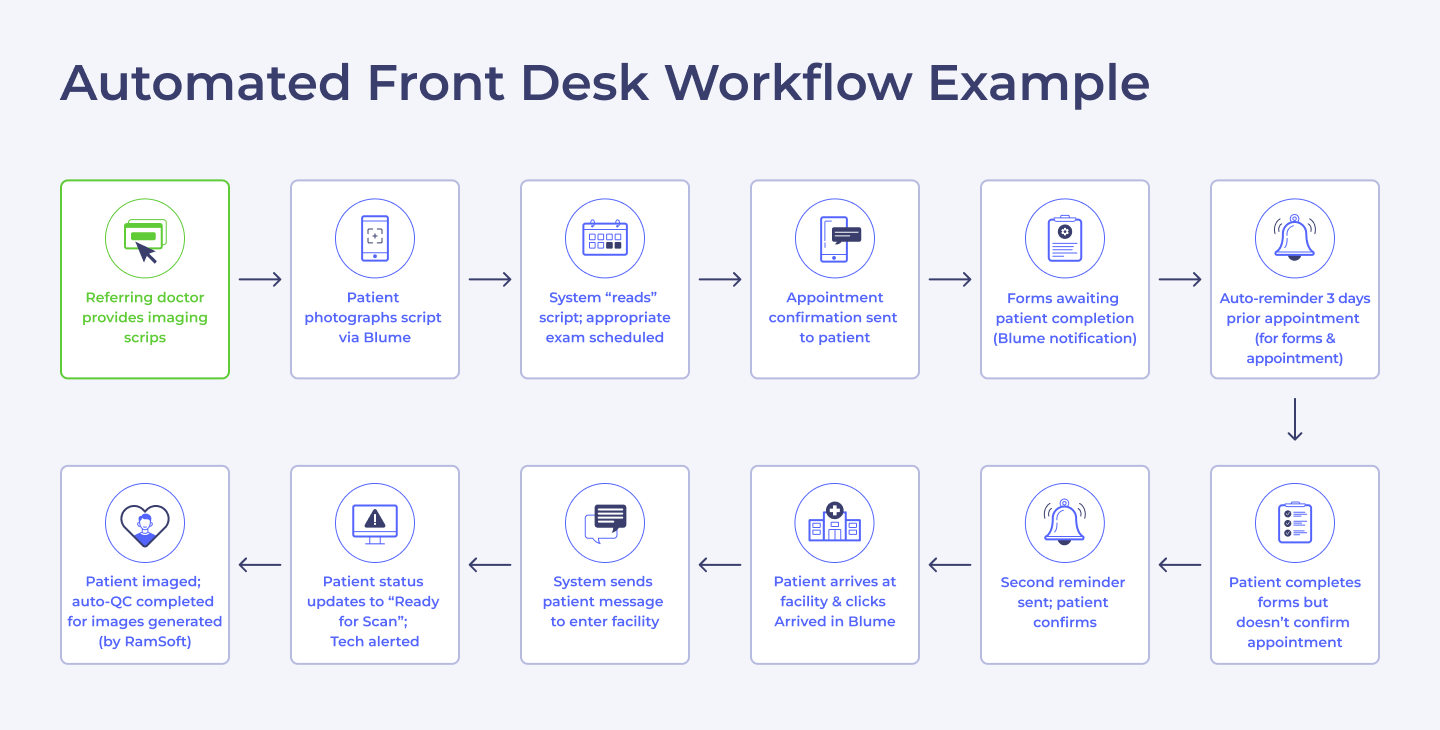

optimized radiology workflow example
  • Multimodality Integration: PACS harmoniously integrates images from various sources like MRI, CT scans, X-rays, and ultrasounds, providing a comprehensive view of patient data.
  • Advanced Viewing Tools: Enables radiologists and medical professionals to manipulate images (zoom, pan, adjust brightness/contrast) for a detailed examination.
pacs system radiology image viewer tool
  • Remote Access: Clinicians can access necessary images remotely, ensuring continuity of care even from distant locations.
  • Security and Compliance: Ensures that patient data is stored and transmitted with the highest levels of encryption, maintaining HIPAA and other regulatory compliances.
  • Redundancy and Backup: Incorporates fail-safe measures to prevent data loss. Regular backups and redundancy features ensure that data is safe and retrievable.
  • Customizable User Interfaces: Adaptable to specific user needs or departmental requirements, making it user-friendly and tailored to individual preferences.

Who uses PACS systems?

PACS systems in healthcare, initially rooted in radiology, now span various medical specialties, revolutionizing imaging and diagnostics. Radiologists, cardiologists, nuclear medicine professionals, dermatologists, pathologists, and oncologists all extensively use PACS systems for enhanced image clarity, analysis, and detailed imaging capabilities.

Additionally, nurses, medical technicians, and administrative staff in hospitals and clinics have seamlessly integrated PACS into their daily operations, signifying its indispensable role in modern healthcare

Facilities Utilizing PACS Systems

Hospital PACS systems

Group of radiologists are viewing MRI images with PACS System for hospital

In primary healthcare, the adoption of PACS systems by hospitals marks a significant evolution in medical imaging. From emergency settings to specialized departments, these systems are indispensable. They grant immediate access to critical diagnostic images, ensuring a rapid diagnosis. This quick access, coupled with the system’s organizational capabilities, enhances patient care, streamlining processes, and bridging communication gaps among medical professionals.

PACS System for Imaging Centers

Harnessing the efficiency of PACS systems, imaging centers are optimizing diagnostic processes like never before. With a daily volume of numerous scans, these centers utilize PACS to organize, securely archive, and swiftly distribute critical images to referring doctors, specialists, and collaborative medical teams. This strategic implementation improves accuracy, ensuring the highest level of patient care through streamlined communication.

OmegaAI offers imaging centers an advanced layer of intelligent processing and storage solutions. Its state-of-the-art capabilities ensure faster image retrievals and enhanced diagnostic accuracy, positioning OmegaAI as the future-ready choice for modern imaging centers.

OmegaAI ads banner

In addition to hospitals and imaging centers, PACS systems are also utilized by specialty clinics, dental practices, veterinary clinics, research institutions, mobile imaging services, telemedicine providers, urgent care centers, and educational institutions.

How Does a PACS Work?

In essence, PACS serves as a digital vault. Once an imaging device like an X-ray or MRI captures an image, this DICOM format image gets transmitted to the PACS server. This server not only hosts these images but ensures their meticulous organization and indexing. Clinicians access these images via dedicated workstations linked to the PACS, harnessing advanced tools for interpretation. The PACS's connectivity with a web server permits other professionals, even at remote locations, to access these images, ensuring that diagnostic information is always at hand.

What are the components of PACS?

PACS, an intricate medical imaging system, encompasses four primary components:

  • Imaging Modalities: These are devices such as magnetic resonance imaging (MRI), computed tomography (CT), PET, X-ray angiography, and echocardiography. Together with acquisition gateway computers, they digitize images, convert them to the DICOM format, and preprocess the image data, including tasks like resizing and orientation calibration.
  • Communication Networks: These networks ensure seamless data transfer among PACS components and external systems. Moreover, they are vital for data transmission to distant locations.
  • PACS Archive and Server: This core component archives patient data and imaging files. It comprises two sub-components: the archive system and storage media (database). The Vendor Neutral Archive (VNA) is a notable feature that consolidates and archives PACS images and data centrally, promoting interoperability and accessibility. This eliminates isolated storage pools originating from department specific PACS, such as Radiology PACS.
  • Display Workstations (WS): These are essential for clinical image interpretation. Radiologists and other clinicians utilize them for primary diagnoses, which is why they are sometimes referred to as diagnostic WS’s. The WS offers functions like image access, manipulation, and documentation.

How Are PACS Stored?

Medical images in PACS are predominantly stored in the DICOM format, a standard that streamlines the management, storage, printing, and transmission of medical imaging information. The storage of these images can be categorized into the following:

Primary Storage

Primary storage is where newly acquired, and frequently accessed images reside. It emphasizes quick retrieval times, typically utilizing high-speed disk arrays or other fast-access storage technologies. However, due to its limited storage capacity, older or less frequently accessed images need to be relocated periodically.

Archive Storage

As primary storage reaches its capacity or after a specific duration, images transition to archive storage, serving as a long-term storage solution. While technologies like magnetic tapes or high-capacity disk arrays offer vast storage capacity, retrieval times tend to be slower. Additionally, physical media can degrade over time.

On-Premises Storage

On-premises storage means storing medical data directly in a healthcare facility's own systems. It offers unmatched direct access, a key advantage. However, it comes with notable challenges: a significant initial hardware investment, ongoing maintenance costs, and potential vulnerabilities due to localized risks, threatening data security and integrity.

Cloud-Based Storage

A doctor uses a PACS system cloud interface, showcasing the fusion of healthcare and advanced digital technology.

Cloud PACS is a medical imaging technology that uses cloud-based solutions to store, retrieve, and distribute patient images and related data. By leveraging third-party data centers, Cloud PACS offers enhanced security and global accessibility while reducing the need for on-site hardware. The system provides cost-effective scalability and a built-in mechanism for disaster recovery. However, there can be concerns with data sovereignty, potential latency in image retrieval, and the reliance on consistent internet connectivity.

Native Cloud Storage

Cloud-native PACS is a game-changer for the world of radiology. By shifting image storage and management to the cloud, it optimizes the entire radiology workflow. Radiologists can access patient images from anywhere, making remote consultations feasible and efficient. This not only speeds up diagnosis and treatment plans but also reduces the costs associated with traditional PACS hardware. Additionally, with AI integration, image analysis and report generation become faster and more accurate, enhancing patient care. A 2022 Google Life & Sciences, Supporting healthcare delivery with cloud-native medical imaging article, offered this perspective, speaking specifically to cloud-native PACS solutions:

“With increasing pressure to reduce hard costs and uncover invisible costs, onboarding a cloud-native imaging solution not only offers seamless data migration and 99.99% or higher uptime, but can also reduce cost of ownership by 20%.”

PACS System Integration with other systems

PACS Systems are maximized when integrated with other essential healthcare systems. Crucial systems for integration with PACS systems include:

Requirements for PACS system

Standard PACS systems require a multi-core processor at 2.5 GHz or above, a minimum of 8GB RAM (16GB for optimal performance), and a 256GB SSD for speedy data access. Institutions with larger databases often need expanded storage. Additionally, a high-quality graphics card with 2GB dedicated video memory and a calibrated high-resolution monitor are vital for precise medical imaging.

However, requirements can differ based on the PACS vendor’s software. For instance, OmegaAI operates efficiently on minimal specifications and offers the convenience of browser-based access allowing medical professionals to retrieve and view images from any device, enhancing the overall efficiency and accessibility of the PACS system.

 How to use a PACS system?

Effectively utilizing a PACS involves secure logins, accessing patient images, and often integrating findings into electronic health records. PACS administrators are pivotal in this process, overseeing secure logins, user access, and maintaining the image repository for efficient retrieval. This multifaceted role ensures that healthcare professionals can confidently navigate the PACS system, delivering accurate diagnoses and enhanced patient care.

PACS administrators collaborate with other healthcare professionals to optimize image quality and assist in configuring display settings for accurate diagnosis. Their role extends to ensuring seamless integration between PACS and Electronic Health Records (EHR), ensuring a comprehensive patient record. On a daily basis, PACS administrators maintain system integrity, conduct data backups, handle updates, and provide essential user training and support.

Benefits of PACS

  • Cost-effectiveness
  • Reliability and Operator-friendliness
  • Quick Worklist Update
  • Organized and integrated data management
  • Accurate Image Analysis
  • Multiple-Viewer Advantage
  • Enhancing Accessibility of Images and Reports
  • Secure, Cost-effective Long-term Storage
  • Multiple modality usage
  • Scalability

OmegaAI goes beyond the advantages of the PACS system, managing the entire radiology workflow from the initial referral to updating the patient portal. By integrating these diverse systems, efficiencies are maximized throughout the entire process, ensuring seamless automation across referrals, imaging, patient data capture, storage of images, insurance billing, and patient portal updates.

advantages of pacs system infographic



Disadvantages of PACS

  • High Setup Costs
  • Training Necessities
  • Integration Hurdles
  • Scalability

However, it's crucial to note that the challenges posed by these disadvantages can be effectively addressed with the guidance and support of a reliable PACS vendor. A reputable vendor helps optimize initial costs, provides comprehensive training, ensures seamless integration, prioritizes data security, and offers scalable solutions. Their expertise and commitment to customer satisfaction play a pivotal role in overcoming the potential drawbacks associated with PACS implementation.

History of PACS System

The history of PACS is a journey from its early stages in the late 20th century to its sophisticated present. Initially, PACS faced challenges in image archiving and compatibility. The turning point came in the mid-1980s when industry leaders collaborated to establish the DICOM (Digital Imaging and Communications in Medicine) standard, revolutionizing PACS.

Over the years, PACS has evolved to encompass various features, such as workflow management and reporting. The future of PACS is expanding to manage medical imaging for various disciplines, supported by technologies like vendor-neutral archives (VNAs) and Imaging EMRs.

How much does a PACS System Cost?

The cost of a PACS System can vary significantly based on several factors, including the size of the healthcare facility, the complexity of the system, and the specific features and functionalities required. On average, a basic PACS system can start at around $30,000 to $50,000 for a smaller clinic or imaging center. However, for larger hospitals and medical institutions with more extensive requirements, the cost can range from $100,000 to several million dollars.

Additional expenses may include hardware (servers, workstations, storage devices), software licenses, installation and implementation costs, training for staff, ongoing maintenance and support fees, and any customization or integration with existing healthcare systems.



It's essential for healthcare facilities to work closely with PACS vendors to assess their specific needs and obtain customized quotes to determine the exact cost of implementing a PACS system tailored to their requirements.
